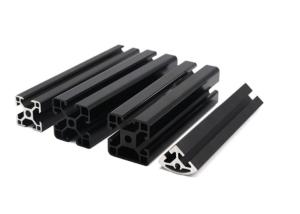

Customized Aluminium Profile System / 40X40 Slot Industrial Aluminium Profile Framing Systems
(1).Suitable for industry,architecture,transportation and so on.
(2).20 years warranty.
(3).High corrosion resistance.
(4).5-10 years weather resistance.
(5).Good wear resistance & anti-scratch.
(6).Size customized.
| Product Name | Industrial aluminium profile |
| Material | Aluminium alloy 6063,6061,6082,6060,6005 |
| Temper | T4 T5 T6 T66 |
| Surface | Mill finish, Sandblasting ,Anoding, powder coated, electrophoresis, Brushing , PVDF coating, wood grain painting, polishing |
| Size | 20 30 45 80 90 series |
| Slot width | 6MM,8MM |
| Length | Customized |
| Appearance | Normally square,round and T-shaped, V-shaped or customized |
| Color | Silver,black,blue,wood color,according to clients' requirements. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
