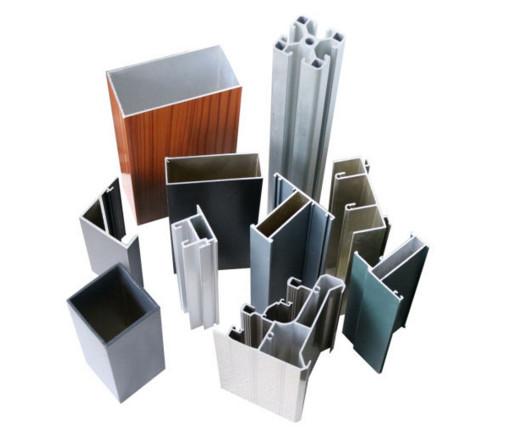

Powder Painting Aluminum Profile / Aluminum Extrusion / Customized Sections
Our 4500T grade extrusion machine enable us to produce any section within 400*150mm and φ360.
Your drawings are definitely welcomed.
Price indication: basic aluminium ingot, extrusion cost, surfacing cost and extra.
We also supply fully assembled premium grade window&door systems
| Product Description | Powder Painting Aluminum Profile / Aluminum Extrusion / Customized Sections |
| Material | Aluminum Alloy 6063-T5, 6063-T6, 6061-T5, 6061-T6 |
| Surface Treatment | Powder coating, PVDF coating, Anodized, Electrophoresis |
| Deep Processing | CNC, drilling, milling, cutting, welding, bending, assembling |
| Specification | A. Length: ≤6.5m
B. Normal Wall thickness: ≥1.0mm
C. Normal Anodizing thickness: ≥8µm
D. Normal powder coating thickness: 60-120µm
E. Color:Silvery white, black, golden, champagne, dark bronze or according to your requirement.
F. Normal Warranty:5-10 years, or as your requirement. |
Applications:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial filed . In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames are adopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
Specifications:
1. Primary Technical Data
1) Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
Competitive Advantage:
1) Engineering design and support.
2) Aluminium profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
Product Tags:
|
|
Powder Painting Construction Aluminum Profile Customized Sections Images
|
